Injection Mold Design: Where Part Consistency Really Begins

Great parts start long before the molding machine cycles. They start with smart injection mold design. Getting the design right on the front end saves you from problems like warping, short shots, or slow cycles later on. At PLASTIC MOLDS USA, we focus on creating molds that are practical, durable, and ready for real-world production.

By combining solid experience with modern tools like mold flow analysis, we spot potential issues while changes are still easy and inexpensive. Our approach to injection mold design takes into account everything from material behavior to cooling efficiency, making sure your mold performs consistently from the first shot to the ten-thousandth.

Whether you are working with commodity plastics or high-performance resins, thoughtful design makes all the difference.

Ready to See your Idea into Reality

We have served 264+ Clients so far…Discuss your Requirements with Our Experts.

Designed for Performance

Built to Last

Every mold starts with a single focus: consistency that lasts. We study your part and material, then lean on injection mold design, 3D mold design, and mold flow analysis to make tools that stick around. It’s not only about the mold itself—it’s about smooth operation every day with support from mold engineering services and tooling manufacturing.

REQUEST A QUOTE ➤

Injection Mold Design Determines Your Production Success

Even the most advanced molding machine can’t fix a poor mold design. Bad molds lead to defects, longer cycles, and constant adjustments. Injection mould design sets the pace for your operation. A good mold runs smoothly, lasts longer, and needs less rework. We take a full approach to design, looking beyond the cavity shape—considering plastic flow, cooling, and part ejection.

That is where tools like mold flow analysis come in handy. By watching how the material moves inside the tool, we can see fill patterns, hot spots, and stress points before they become a problem.

That lets us adjust gate spots, cooling channels, and wall thickness without touching steel yet. The result is fewer errors during tryout and a smoother path to full production. Our mold engineering services cover everything from early concept checks to detailed design for manufacturing.

We ask questions early: What is the expected volume? What tolerances really matter? How will the part be gated and ejected? Answering these questions up front leads to a cleaner, more efficient mold design that saves you time and money across the life of the tool.

Modern Tools That Take the Guesswork Out of Mold Design

In the past, mold design was mostly trial and error. Experience helped, but today we can see inside the mold before it exists. Using advanced software and simulation, we make the process simple and get molds that work right away.

Here is how we use those tools to benefit your project:

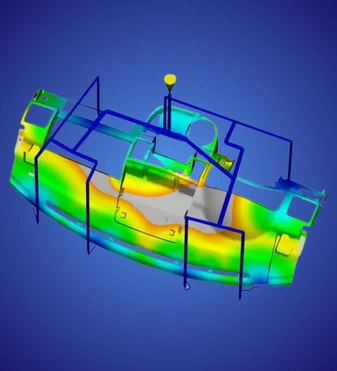

Mold flow analysis helps us see how plastic fills the cavity, where weld lines form, and how the part cools. This lets us adjust gate locations and cooling to prevent defects before they happen.

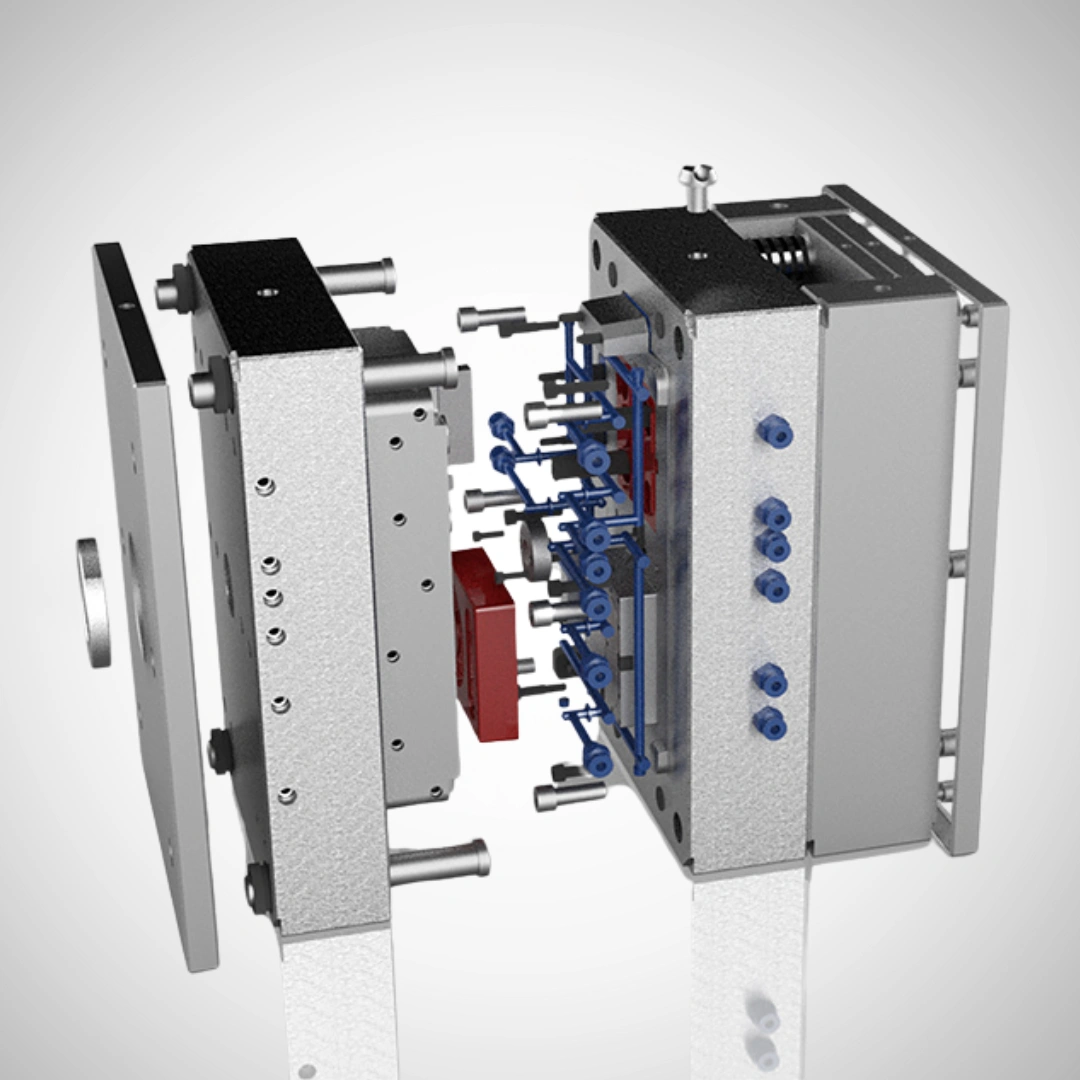

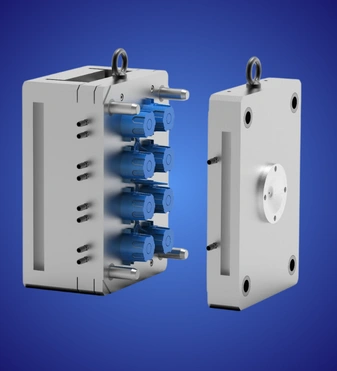

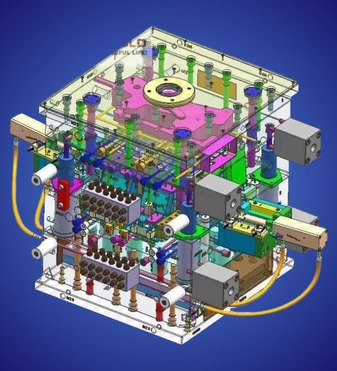

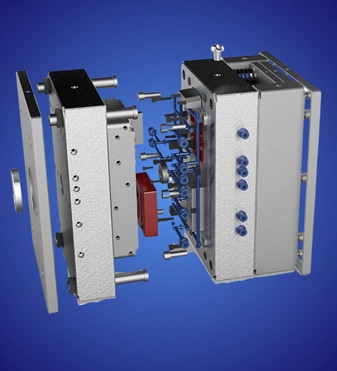

With 3D mold design software, we can see how every component fits and works digitally, so no steel is cut too early. It speeds things up and stops interference issues before they happen.
Thermal analysis ensures cooling is balanced across the part, reducing cycle times and preventing warpage.

By mixing these tools with hands-on experience, we deliver injection mould designs that are fine-tuned and ready to go.

Materials Molded

A Variety of Thermoplastics

- Acrylonitrile Butadiene Styrene (ABS)

- Polyoxymethylene or Polyacetal (ACETAL)

- Polycarbonate (PC)

- Polycarbonate + Acrylonitrile Butadiene Styrene (PC + ABS)

- Polybutylene Terephthalate (PBT)

- Polyethylene (PE)

- Polypropylene (PP)

- Nylon

- Thermoplastic Elastomer (TPE)

Partnering with Experienced Mold Engineering Services

Getting a complex mold right takes more than just software. It takes experience with both wins and losses in molding to know what works and what doesn’t. That’s the kind of insight our mold engineering services bring. We’ve worked on molds across automotive, consumer products, industrial components, and more.

That range of experience means we have run into just about every kind of molding challenge. We know how to design for complex materials, complex geometries, and high-volume production. We also know how to keep the design practical, so your maintenance team does not need frequent rework.
